Details

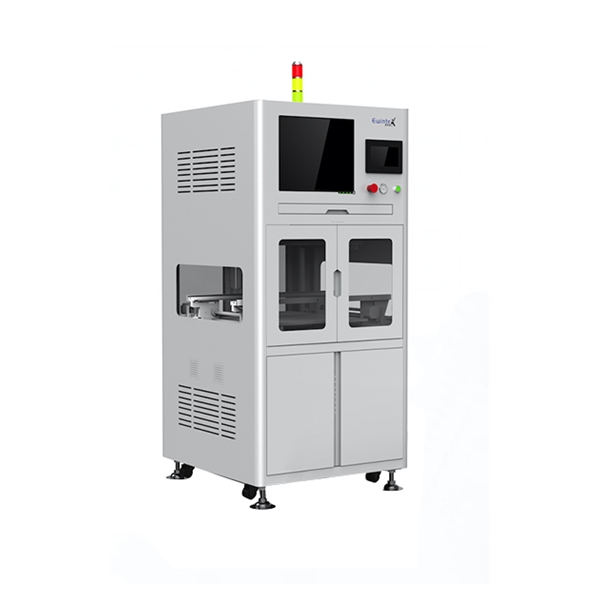

| Equipment model | EA-1 |
| source | 220V |
| Gas source requirements | 0.4~0.6Mp |
| Equipment weight | 250±40KG(Subject to physical condition) |
| Equipment power | 300W(Other power-consuming equipment, such as computers, are additional)） |
| Overall size | L820*W920*H1730mm |
| Track height | 900±30mm |
| Lower level instrument compartment | X:660mm;Y:720mm;Z:470mm |
| Cylinder diameter | Φ100 cylinder bore; optional φ125 cylinder bore |
| Press stroke | 160±5mm |
| PCBA positioning | Photoelectric sensor |
| PCBA safety protection and testing | Mechanical structure of photoelectric sensors |
| Track widening | Automatic, manual |
| PCBA size | L(50-400mm)*W(50-350mm) (customisable) |
| Equipment requirements for PCBA | PCBA board edge ≥ 3MM; components from the board edge ≥ 5mm |
| PCBA weight | Standard equipment ≤ 3KG; (can be customised) |
| Component height | TOP face ≤8CM BOTTOM face ≤2CM |
| Transmission composition | Stepper motor, synchronous belt, flat belt, chain |
| Transmission speed | Adjustable |
| Transmission direction | Left to right; Right to Left |
| control mode | PLC+touch screen |
| Connection of upstream and downstream equipment | SMEMA standard interface |
| Abnormal alarm device | Three color light with built-in buzzer |
